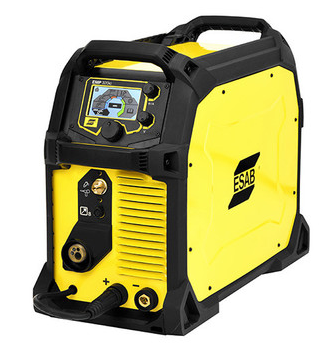

Rebel™ EMP 320ic
The industrial, true multi-process machines that combine power and mobility. These compact and lightweight systems offer flexibility in any fabrication environment. Designed for productivity and reliability, the 4-wheel wire feed system provides high and consistent weld quality regardless of the material being welded.
The EMP 320ic, with a maximum output of 350 Amps, is the ideal universal welding system capable of running 1.2 mm solid and flux-core wires with a high duty cycle
| Specifications | |
|---|---|
| Voltage | 400 VAC 3, 50/60 Hz |
| Max Output | 350 A |
| MIG (GMAW) Welding Output | 320 A / 30.0 V @ 40 % Duty Cycle 265 A / 27.3 V @ 60 % Duty Cycle 200 A / 24.0 V @ 100 % Duty Cycle |
| MMA (SMAW) Welding Output | 300 A / 32.0 V @ 40 % Duty Cycle 255 A / 30.2 V @ 60 % Duty Cycle 180 A / 27.2 V @ 100 % Duty Cycle |
| TIG (GTAW) Welding Output | 320 A / 22.8 V @ 40 % Duty Cycle 265 A / 20.6 V @ 60 % Duty Cycle 200 A / 18.8 V @ 100 % Duty Cycle |
| Voltage Range | 360-440 VAC |
| Wire Feed Information | 2.0-20.3 m/min |
| Metal Aluminium Stainless Steel Mild Steel Flux Cored |
1.0-1.2 mm 0.8-1.4 mm 0.8-1.4 mm 0.8-1.6 mm |
| Max Spool Diameter | 200 & 300 mm |
| Supply Plug | CEE16A plug |
| MCableX | 3 m 4×2.5 mm2 |
| Enclosure Class | IP23S |
| Certification & Standards | CE: IEC/EN 60974-1, 5, 7, 10, 12 & 13. RoHS |
| Dimensions, L x W x H | 686 x 292 x 495 mm |
| Weight | 31.4 kg |
