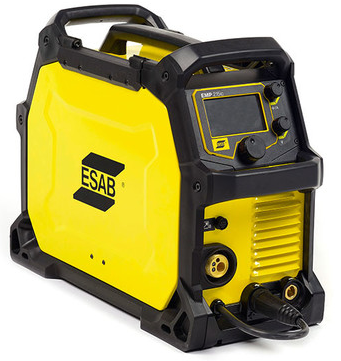

Rebel™ EMP 215ic
The Rebel™ Series Welding Machines offer 120/230V flexibility and some of the most innovative welding technology available. A breakthrough design inspired by professional welders, the Rebel is a complete package to weld anything –mild steel, MIG aluminium, stainless steel –and go anywhere..
Specifications
| Specifications | |
|---|---|
| Voltage | 120/230 V 1, 50/60 Hz |
| Max Output | 240 A |
| MMA (SMAW) Welding Output | 90 A / 23.6 V (120) @ 40 % Duty Cycle 180 A / 27.2 V (230) @ 25 % Duty Cycle |
| MIG (GMAW) Welding Output | 130 A / 20.5 V (120) @ 20 % Duty Cycle 205 A / 24.3 V (230) @ 25 % Duty Cycle |
| TIG (GTAW) Welding Output | 130 A / 15.2 V (120) @ 40 % Duty Cycle 180 A / 17.2 V (230) @ 30 % Duty Cycle |
| Current Range 230V 120V |
5 – 240 A 5 – 150 A |
| Voltage Range | 90-270 V 10-26 V |
| Wire Feed Information | 1.5-12.1 m/min |
| Open Circuit Voltage | 68 V |
| Use With Welding Material | 9.5 mm (3/8 in.) |
| Metal Flux Cored Mild Steel Stainless Steel Aluminium |
0.8-1.2 mm 0.6-1.0 mm 0.8-1.0 mm 0.8-1.2 mm |
| Max Spool Diameter | 100 & 200 mm |
| Supply Plug | 230 V, Schuko 16A plug |
| MCableX | 3 m 3×2,5 mm² H07RN-F |
| Rated kVA | 7 kVA (230 V) 4.5 kVA (120 V) |
| Enclosure Class | IP23S |
| Certification & Standards | CSA: CSA E60974-1-00, IEC 60974-1 CE: IEC/EN 60974-1, 5, 7, 10, 12 & 13. RoHS |
| Dimensions, L x W x H | 584 x 229 x 406 mm |
| Weight | 18.2 kg |
