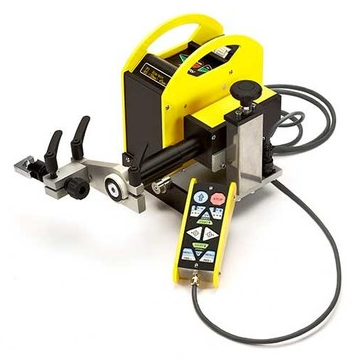

Railtrac B42V
Railtrac B42V is a welding tractor system that can be configured to create the optimal solution for your mechanized welding application. To minimize problems associated with harsh environments, most mechanical parts are constructed in aluminum or stainless steel. The system is designed for horizontal and vertical up and down when applicable.
Railtrac B42V can be easily connected to most ESAB wire feeders with no major modification. Remote adapters have to be mounted in feeders Aristo© Feed 3004/4804, Origo™ Feed 304/484 and Warrior™ Feed 304. Railtrac B42V features different torch holders for various applications.
With the optional Orbital kit you can convert the B42V into a pipe welder that can be used for orbital welding of pipes from 20 in. and up, in horizontal and vertical joints, with or without weaving.
Specifications
| Measurements and Dimensions | |
|---|---|
| Slide Height Adjustment (met) | ± 45 mm ( ± 1.8 in. ) |
| Dimensions (LxWxH) (met) | 210 x 360 x 270 mm ( 8.3 x 14.2 x 10.6 in. ) |
| Weight (met) | 8 kg ( 17.6 lbs ) |
| Power Requirements | ||||
|---|---|---|---|---|
| Conditional Qualification | – | – | – | Battery (optional) |
| Battery Voltage, VDC | – | – | – | 18 V |
| Connection Voltage | – | 24 – 70 VDC | 20 – 50 VAC | – |
| Max Power Output | – | – | – | 50 W |
| Enclosure | IP44 | – | – | – |
| Specifications and Dimensions | ||
|---|---|---|
| Conditional Qualification | w/Battery (optional) | – |
| Max Load (met) | 5 kg ( 11 lbs ) |
10 kg ( 22 lbs ) |
| Welding Speeds | ||
|---|---|---|
| Conditional Qualification | w/battery | – |
| Travel Speed (met) | 25 mm/sec ( 60 in./min ) |
30 mm/sec ( 72 in./min ) |
| Capacities and Temperatures | ||
|---|---|---|
| Temperature, Machine and Magnets (met) | 70 °C ( 158 °F ) |
|
| Temperature, Vacuum Attachment (met) | 90 °C ( 194 °F ) |
|
