Pipeworx 400 Welding System 230/460 V
Simplified and optimized for pipe fabrication shop welding, the PipeWorx systems streamlined set-up with one touch welding, quick process changeover, and Pulsed and Modified Short-Arc MIG processes, makes training and turn-around times faster than ever before.
Features

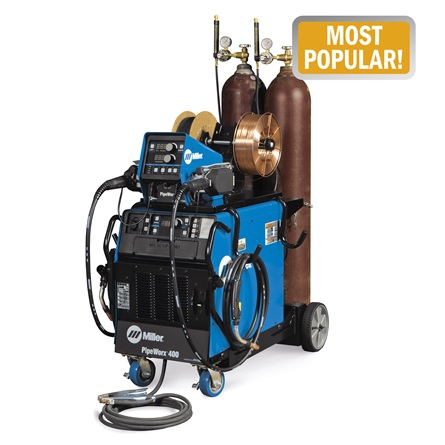

What’s Included
- PipeWorx 400 Power Source, 230/460V
- PipeWorx Dual Feeder with drive rolls (300366)
- Two 15 ft (4.6 m) PipeWorx 300A MIG Guns (195400)
- Side-mount Cable Hangers
- Cable Kit with 25ft. (7.6m) Work Sense Lead (300367)

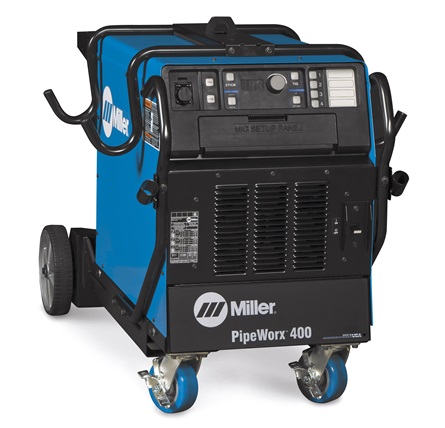

- Running Gear with Dual Cylinder Rack (300368)
Simple Process Setup
- Clearly labeled controls in easy-to-understand welder terminology.
- Requires just a few basic steps to set up a new weld process, resulting in less training time and minimizing errors from incorrect setups.
- The front panel was designed by welders for welders. Only backlit controls are adjustable to eliminate confusion.
- Memory feature stores four programs for each selection: Stick, DC TIG, and MIG (left and right side of feeder). Beneficial when using multiple procedures, multiple process parameters or multiple welders and eliminates the need to remember parameters.
Quick Process Changeover
- No need to manually switch polarity or cables and hoses between processes. Simply push a process selection button to choose a welding process. PipeWorx ‘Quick-Select’ technology automatically selects the welding process, the correct polarity, cable outputs and welding parameter.
- Quick process changeover eliminates set-up time for switching cables and gas hoses. Also, reduces the risk of weld reworks due to incorrect cable connection.
Multiprocess Machine
- Weld processes are optimized to deliver superior arc performance and stability specifically for root pass, fill and cap pipe welding.
- Includes conventional Stick, DC TIG (Lift-ARC™ or HF Start), Flux-Cored and MIG welding processes.
- Also features the advanced RMD® and Pulsed MIG processes that deliver superior quality welds, increase productivity, and reduce rework and training.
Streamlined System
- Wind Tunnel Technology™ and Fan-On-Demand™ provide system protection in the dusty shop environment.
- Innovative cable and gun storage manages clutter for a cleaner, organized weld-cell area. Cables remain connected to the power source and do not need to be switched for the different welding processes.
- All system components have been selected to meet the needs of a pipe fabrication shop.
Not Included
- PipeWorx Accessories Kit for Dual Feeder, 300568 (25-ft work cable, EG500 work clamp, two Miller | Smith flowmeter regulators and two 4-ft gas hoses)
- Power Cord
- Filler Metals
- Your local welding distributor can provide shielding gas, additional welding wire and a full product offering.
- Shielding gas
Specifications
| Title | Pipeworx 400 Welding System 230/460 V |
|---|---|
| Industries Interests | Shipbuilding Pipeline Welding Education and Training Construction and Fabrication |
| Weldable Metals | Specialty Metals Stainless Steel Steel |
| Input Voltage | 220/230/240 V 460/480 V |
| Rated Carbon Diameter | 5/16 in (7.9 mm) |
| Input Phase | 3-Phase |
| Input Hz | 50/60 Hz |
| Current Type | DC |
| Max Open Circuit Voltage | 90 VDC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Standard) |
| Weld Output | CC / CV |
| Applications | Fabrication Pressure Vessel |
