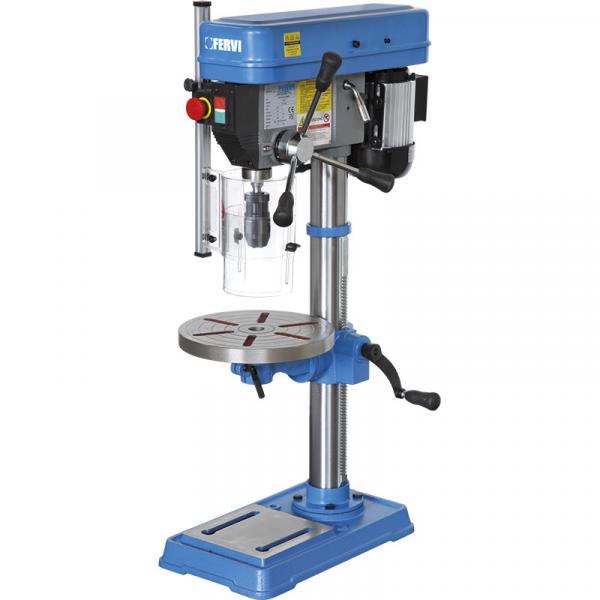

PILLAR DRILLING MACHINE
FERVI 0012 – 230V 650W Drill press with drive belt with inclinable and rotating table.
- Column: ø 72 mm
- Continuous drilling capacity: ø 12 mm
- Distance between spindle nose and base: 650 mm
- Distance spindle axis – column surface: 160 mm
- Engine: 230 V 50 Hz 0,65 kW
- height: 990 mm
- Keyless chuck: 2 – ø 16 mm B18
- Max distance spindle nose – table: 435 mm
- Max drilling capacity on cast iron with pre-drilling hole: ø 20 mm
- Max drilling capacity on steel with pre-drilling hole(s235jr): ø 16 mm
- Quill: ø 40 mm
- Spindle speed: 280 – 2380 rpm
- Spindle travel: 80 mm
- Table dimensions: ø 290 mm
