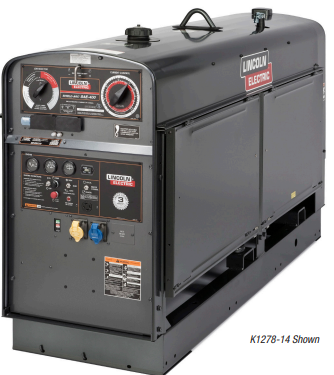

Lincoln Start & Weld SAE-400
This product is a Diesel Workhorse™. Cphas Hardwares is the distributor and supplier of Lincoln Welding Machines in Nigeria. For demanding jobs that call for high amperage capabilities, the SAE-400® offers 400 amps for DC stick welding and AC power. The SAE-400® is powered by a heavy duty Perkins® industrial diesel engine. This engine offers low maintenance and long life. Add CV wire welding with the optional CV Adapter.
Rugged Construction
- Heavy gauge steel case withstands rough field handling.
Dual Continuous Output Control
- Continuous adjustment of voltage and current.
- Select either a soft “buttery” arc or snappy “digging” arc for fast, highquality welding.
Arc Gouging
- Arc gouging with up to 3/8 in. (10 mm) carbons.
- Multiple Arcs
Euro and NEMA receptacles for 60 Hz AC generator power.3,000 watts 1-phase 120V or 240V
Large-capacity DC weld output makes the SAE-400® the #1 choice for multiple arcs with the Multi-Weld™ 350 system. Available power is 22,500 watts at 60V DC.
Technical specifications for Lincoln Welding machine SAE 400 amps
| RATED OUTPUT | 400A DC/40V100% 500A DC/40V/60% |
| OUTPUT RANGE | 80-575A |
| GENERATOR OUTPUT | 3000 Watts |
| TYPE OF ENGINE | Perkins® 1104A-44 Diesel Non-EPA |
| HP AND SPEED | 64.4@1710 |
| CYLINDERS | 4 |
| DIMENSIONS (H X W X D) | 50.1 in x 28 in x 83 in (1273 mm x 711 mm x 2109 mm) |
| NET WEIGHT | 1037kg |
