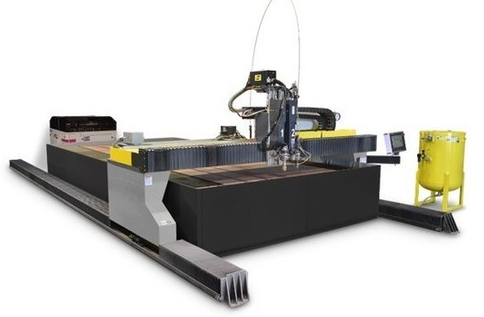

Hydrocut HDX
The Hydrocut HDX Waterjet Cutting System is a heavy-duty gantry cutting machine. Floor mounted crane rails and a rigid gantry are combined with digital AC drive amplifiers, brushless AC motors, and precision gearboxes. The result is a high-performance multi-process capable machine. The Hydrocut HDX easily combines waterjet with other cutting and marking processes, such as plasma cutting, plasma marking, oxy-fuel cutting, or plate lettering or marking tools.
| Specifications | |
|---|---|
| Machine Width | 5400-7150 mm |
| Machine Height | 2900 mm |
| Work Table Height | 866 ±25 mm |
| Parking Area | 3000 mm |
| Plasma Cutting Thickness | 50 mm |
| Oxyfuel Cutting Thickness | 150 mm |
| Maximum Plasma Stations | 2 |
| Maximum Waterjet Stations | 4 |
