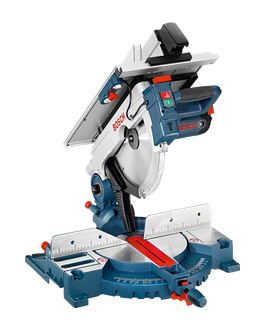

GTM 12 JL Professional
- Table saw and mitre saw in one tool
- Precise work with integrated laser
- Powerful 1800 W motor for fast work progress (up to 95 mm cutting depth – mitre function and up to 51 mm cutting height – table saw function)
Technical data
Additional data |
|
|---|---|
| Rated input power | 1,800 W |
| Saw blade diameter | 305 mm |
| Mitre setting | 48 ° L / 48 ° R |
| Bevel setting | 47 ° L / 2 ° R |
| Saw blade bore diameter | 30 mm |
| Cutting capacity, 0° | 95 x 150 mm |
| Cutting capacity, 45° mitre | 95 x 90 mm |
| Tool dimensions (width x length x height) | 660 x550 x400 mm |
| No-load speed | 3,800 rpm |
| Cutting height of table saw | 51 mm |
| Weight | 21 kg |
Total vibration values (Sawing wood) |
|
|---|---|
| Vibration emission value ah | 3.4 m/s² |
| Uncertainty K | 1.5 m/s² |
Noise/vibration information |
|
|---|---|
| Sound pressure level | 91 dB(A) |
| Sound power level | 104.5 dB(A) |
| Uncertainty K | 3 dB |
Sawing wood |
|
|---|---|
| Vibration emission value ah | 3.4 m/s² |
| Uncertainty K | 1.5 m/s² |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 104.5 dB(A). Uncertainty K= 3 dB.
