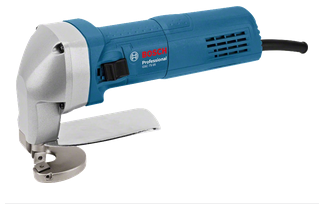

GSC 75-16 Professional Shear

Powerful and handy for fast and comfortable cutting

  • Optimal tool guidance with a small grip circumference
  • High cutting speed with low exertion of force
  • Excellent manoeuvrability in curves

Technical data

Additional data

Cutting capacity in steel (400 N/mm²), max. 1.6 mm
No-load stroke rate 5,200 spm
Material that can be processed Steel up to 400 N/mm² at 1.6 mm
Smallest radius 35 mm
Stroke rate under load 4,000 spm
Weight 1.7 kg
Cutting capacity in steel (600 N/mm²), max. 1.2 mm
Cutting capacity in steel (800 N/mm²), max. 0.7 mm
Cutting capacity in aluminium (200 N/mm²), max. 2.2 mm

Electric specifications

Rated input power 750 W
Power output 400 W

Total vibration values (Cutting sheet metal)

Vibration emission value ah 6 m/s²
Uncertainty K 1.5 m/s²

Noise/vibration information

Sound pressure level 87 dB(A)
Sound power level 98 dB(A)
Uncertainty K 3 dB

Cutting sheet metal

Vibration emission value ah 6 m/s²
Uncertainty K 1.5 m/s²

The A-rated noise level of the power tool is typically as follows: Sound pressure level 87 dB(A); Sound power level 98 dB(A). Uncertainty K= 3 dB.
