Fabricator ET 410iP
The Fabricator ET 410iP is built to withstand rugged use, making it a perfect solution for industrial usage. Ideal for heavy industries.

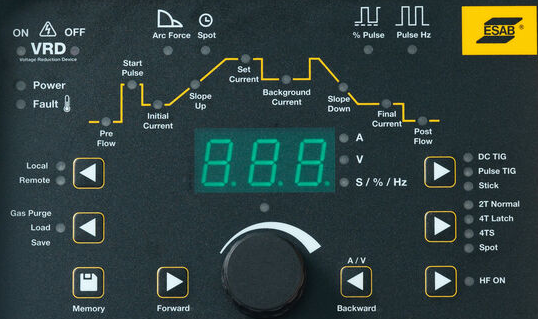

- The intuitive control panel of the ET 410iP makes it easy to optimize settings, reducing the time taken for achieving the best weld characteristics
- Equipped with High Frequency for easy arc starts and Start Pulse (micropulse) which preheats the Tungsten electrode for improved arc stability from the start.
- Pulse background current between 10% and 90% of the set current and pulsing frequency from 0.5 to 250Hz, for optimal pulse in each application.
- Spot mode for easy tack welding and 4TS to be able to pulse only when it’s necessary
- Wide mains voltage tolerance allows for stable welding
- Inverter controlled for high efficiency and low power consumption
- Excellent welding performance with Stick electrodes
Specifications
| Specifications | |
|---|---|
| Voltage | 380-400-415-440 V 3, 50/60 Hz |
| Welding Output | 310 A / @ 100 % Duty Cycle 400 A / @ 60 % Duty Cycle |
| Open Circuit Voltage | 76/15 V |
| Efficiency at Maximum Current | 89 % 86 % |
| Setting Range MMA/DC | 30 – 410 A |
| Setting Range TIG/DC | 5 – 410 A |
| Fuse Slow | 32 A |
| Voltage Steps | ET 410iP |
| Operating Temp | -10 – +40 °C |
| Enclosure Class | IP23S |
| Certification | CE, CCC |
| Dimensions, L x W x H | 525 x 280 x 475 mm |
| Weight | 35.2 Kg |
