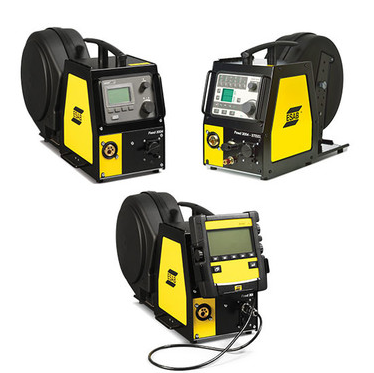

ESAB Wire Feeder FEED-3004
Sturdy design with galvanized metal casing for use in tough environments. Electronically controlled feeding gives accurate and stable arc. The 4-wheel feeder mechanism with grooves in both feed roll and pressure roll gives stable feeding and low wear on the wire, all to avoid operational disturbance.
The feeders are available with either 30 mm diameter rollers for wires 0.6 to 1.6 mm in Steel, Stainless and 0.9 to 1.6 mm in Aluminium. Choose your level of control. Multiple panel options with U6, U82 and the new MA25 panel specialised for Steel and Aluminium applications.
Specifications
| Specifications | |
|---|---|
| Voltage | 42 V , 50/60 Hz |
| Wire Feed Information | 0.8-25.0 m/min |
| Metal Mild Steel Stainless Steel Aluminium Cored |
0.6 – 1.6 mm 0.6 – 1.6 mm 1.0 – 1.6 mm 0.9 – 1.6 mm |
| Max Spool Diameter | 300 (440**) mm |
| Dimensions, L x W x H | 690 x 275 x 420 mm |
| Weight | 15 kg |
