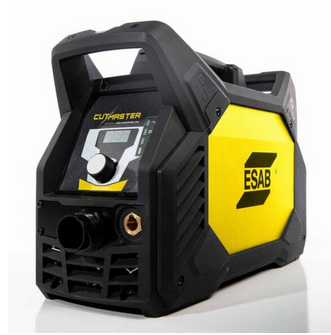

ESAB Cutmaster® 40
The Cutmaster® 40 with SL60™ 1Torch® is the perfect combination of end-user insight, advanced technology, and intelligent design. Packed with power and offering the highest power-to-weight ratio in its class, the Cutmaster 40 with SL60 1Torch also has best in class cutting arc length and the most empowering and engaging user experience no matter the application.
| Specifications | |
|---|---|
| Amp Low – High | 15 A – 40 A |
| Input Ratings | 200-240 ±10% VAC, 1 ph, 50/60 Hz |
| Duty Cycle | 40 A @ 35 % duty cycle 20 A @ 100 % duty cycle 30 A @ 60 % duty cycle |
| Gas Requirements | Compressed Air |
| Gas Pressure | 6.2-8.6 bar |
| Gas Flow | 142-235 l/min |
| Pierces | 12 mm |
| Plate Thickness 1 mm 2 mm 4 mm 5 mm 6 mm 9 mm 13 mm |
Recommended Cut Speed 7670 mm/min 6985 mm/min 2667 mm/min 1778 mm/min 762 mm/min 508 mm/min 254 mm/min |
| Recommended Cut | up to 12 mm |
* at Maximum Cut Capacity
