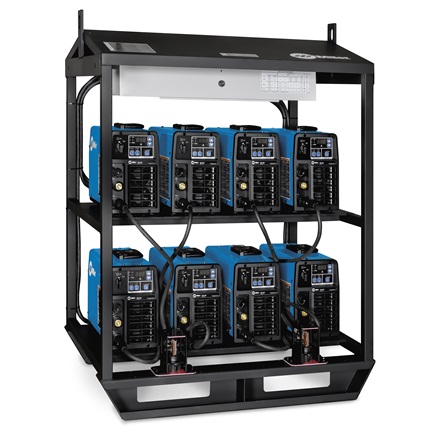

CST™ 282 8-Pack Rack 208-575 V, Tweco
Processes
General Specifications
| Title | CST™ 282 8-Pack Rack 208-575 V, Tweco® |
|---|---|
| Industries Interests | Shipbuilding Pipeline Construction and Fabrication |
| Connector Style | Tweco |
| Weldable Metals | Specialty Metals Stainless Steel Steel |
| Input Voltage | 460 V 575 V |
| Rated Carbon Diameter | 3/16 in (4.8 mm) |
| Input Phase | 3-Phase |
| Input Hz | 50/60 Hz |
| Current Type | DC |
| Max Open Circuit Voltage | 103 VDC |
| Rack Capacity | 8 |
| Portability | Lift Eye (Standard) Running Gear / Cart (Standard) |
| Weld Output | Stick: 30–280 A, TIG: 5–280 A |
| Applications | Fabrication Pressure Vessel |
| Net Width | 43 in |
| Net Height | 34.375 in |
| Net Length | 59.375 in |
| Net Weight | 550 lbs |
| Warranty | 3 Years |
