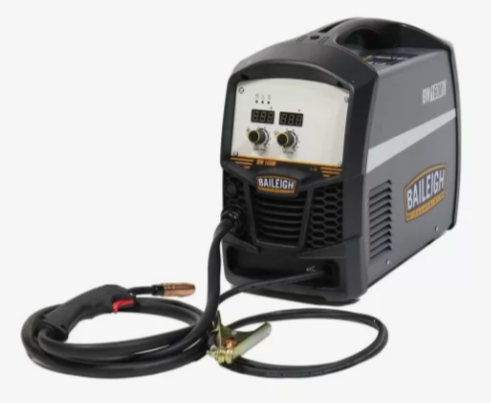

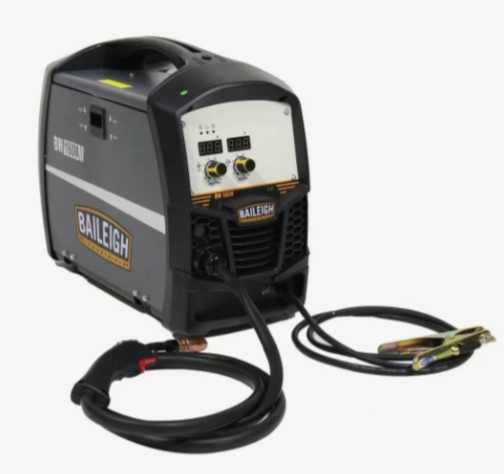

Baileigh Welding Machine BW 160
- IGBT Inverter MIG welder
- Dual voltage can run on 120 volt or 230-volt single-phase power
- Step-less Amp/Volt Adjustment
- Thermal Overload Protected
- Fan Cooled
- Generator Safe
- Gas/Gas less Capable
- Easily sourced consumables
- MIG Torch, ground clamp, 6-50P 250V plug, adapter to 120V plug, and gas hose with regulator
| Stock Number | BA9-1021970 |
|---|---|
| Certification | CSA UL |
| Cooling System | Fan Cooled |
| Current Draw (Watts) | 160 Amps |
| Duty Cycle 100 | 57A (120V) / 72A (230V) |
| Enclosure Protection | IP21S |
| Input Power | Dual Voltage – 120V/230V Single Phase |
| Insulation Class | H |
| Model Number | BW-160M |
| No Load Voltage | 54V (120V) / 54V (230V) |
| Power Factor | 0.7500 |
| Product Lease Price | 23 |
| Prop 65 | Cancer and Reproductive Harm |
| Rated Duty Cycle | 40% (120V) / 20% (230V) |
| Rated Input Capacitance | 6.9KVA (120V) / 8.3KVA (230V) |
| Rated Input Current | 20A (120V) / 28A (230V) |
| Rated Working Voltage | 18.5V (120V) / 22V (230V) |
| Shipping Dimensions (L x W x H) (In.) | 26x13x18 |
| Weight (Lbs.) | 39 |
| Welding Current | 30~90A (120V) / 30~160A (230V) – MIG |
| Efficiency (percentage) | 85% |
