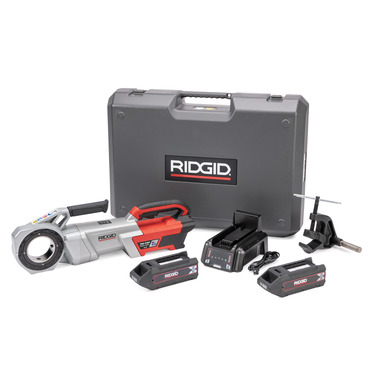

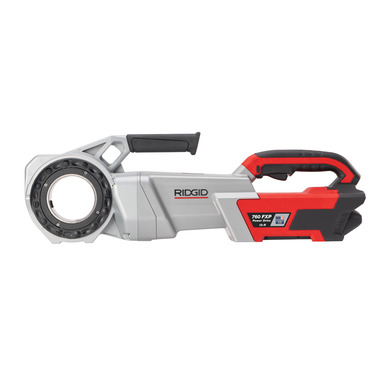

760 FXP Power Drive
Thread pipe quickly and precisely with the battery-powered RIDGID 760 FXP™ Power Drive. The FXP™ Technology Platform offers portability and provides the power to achieve up to 30 2″ threads per charge*. When kickback is detected during threading the tool will automatically shut off. The Power Drive also delivers industry-leading speed with added features like workspace lights and LED alerts when the thread is nearing completion. This tool provides everything you need to get the job done.
Features
- Cordless Freedom – Complete up to 30 2″ threads on a single charge with the FXP Battery Platform*
- Torque Reaction Shutoff – Tool automatically shuts off if kickback is detected
- Workspace LEDs – LED near die head illuminates the work area
- End of Thread Indicator – LEDs indicates when the thread is nearing completion
- Palm Pad – Eliminate the need to contact the diehead directly when starting the thread with a conveniently placed palm pad
- Connected – Customize, monitor and manage your tool with the RIDGID Link app
- Compatibility – Compatible with existing RIDGID die heads and the 258 & 258XL Pipe Cutters (12-R Tool Only)
- FXP Battery charging times – 4Ah: 40min, 8Ah: 80min
*Based on internal testing cutting 2” NPT threads on schedule 40 steel pipe.
Specifications
| OD capacity: | 1/8″-2″ |
| Battery system: | 760 FXP 4Ah, 60V Max* |
| Motor: | Brushless DC |
| RPM: | 42, no load |
| Weight: | 10.9 kg / 24 lbs |
| Height: | 23.1 cm / 9.1″ |
| Length: | 70.6 cm / 27.8″ |
| Width: | 13.2 cm / 5.2″ |
| Body: | Aluminum/Glass Filled Plastic |
| *Maximum battery pack voltage (V Max) is 60V and indicates the required charger output voltage and open circuit battery voltage when fully charged without a workload. This battery does not operate continuously at V Max. Nominal voltage is 54V and approximates the average operational voltage with a workload. This battery operates at a voltage that decreases during discharge. |
