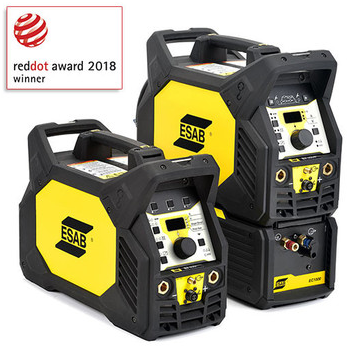

Renegade ET 300i / ET 300iP
The Renegade TIG are inverter based High frequency TIG (HF) and MMA/Stick machines with extreme power to weight ratio. The compact format makes it easy to carry and bring to any jobsite. Combined with high duty cycle and the ability to run the machine on long mains and welding cable makes this a superior welding machine for both on-and off site applications.
The machine has an automatic input voltage sensor and can operate with any input voltage between 208V and 528V in 3-phase and 230V in single phase.
| Specifications | |
|---|---|
| Voltage | 230-480 V 3, 50/60 Hz 230 V 1, 50/60 Hz |
| Max Output | 300 A |
| TIG (GTAW) Welding Output | 300 A / 22.0 V @ 40 % Duty Cycle 250 A / 20.0 V @ 60 % Duty Cycle 200 A / 18.0 V @ 100 % Duty Cycle |
| Stick (MMA) Welding Output | 300 A / 32.0 V @ 40 % Duty Cycle 250 A / 30.0 V @ 60 % Duty Cycle 200 A / 28.0 V @ 100 % Duty Cycle |
| Current Range | 5-300 A |
| Power Factor at Maximum Current | 0.96 |
| Fuse Slow | 16 A (400 V) |
| Energy Save Mode | 88 W |
| Enclosure Class | IP23 |
| Application Class | S |
| Certification | CE |
| Dimensions, L x W x H | 460 x 200 x 320 mm |
| Weight | 16.9 / 26.9 kg |
